QakBot's Endgame: The Final Move Before the Takedown

Figure 1
Figure 1
(Attribution at the bottom)

Qakbot, known under aliases like QBot, QuakBot, and Pinkslipbot, represents an intricately advanced malware strain that has maintained a consistent presence since 2007. Its substantial impact is evident in infecting more than 700,000 victim computers, orchestrating ransomware deployments, and causing widespread financial effects. The consequences of this digital threat have reached across the globe. On August 29, a globally coordinated operation named 'DuckHunt,' led by the Justice Department and the FBI, achieved a significant milestone by successfully dismantling Qakbot's operations. You can find more information regarding the dismantling on the following link – Story Link

This research delves into a substantial upward attack trend observed by Trellix Advanced Research Center. It involves the utilization of JS files as the initial infection vector employed by the QBot malware, a trend that emerged in April 2023.

Brief history of Qakbot

Qakbot, a highly sophisticated banking trojan, has a significant history of malicious activity dating back to at least 2007. This dangerous malware possesses worm-like capabilities, enabling it to autonomously spread within infected networks. Its primary objective is to pilfer sensitive data from compromised systems, including login credentials and financial information.

Additionally, Qakbot can download and execute additional malware on the victim's system, showcasing its versatility and potential for further harm. Over time, Qakbot has evolved to incorporate new functionalities such as command and control (C2) communication, enabling the acquisition of additional malware modules and facilitating data exfiltration.

Furthermore, the malware employs multiple evasion techniques and is designed to detect sandboxes, enhancing its ability to avoid detection. Qakbot commonly spreads through phishing emails and malicious attachments, although it has also been observed as a secondary payload delivered by other botnets like Emotet. Notably, Qakbot has been associated with dropping various ransomware strains, including Prolock, Egregor, and DoppelPaymer. It has also served as an initial entry point in campaigns orchestrated by threat actor group TA570.

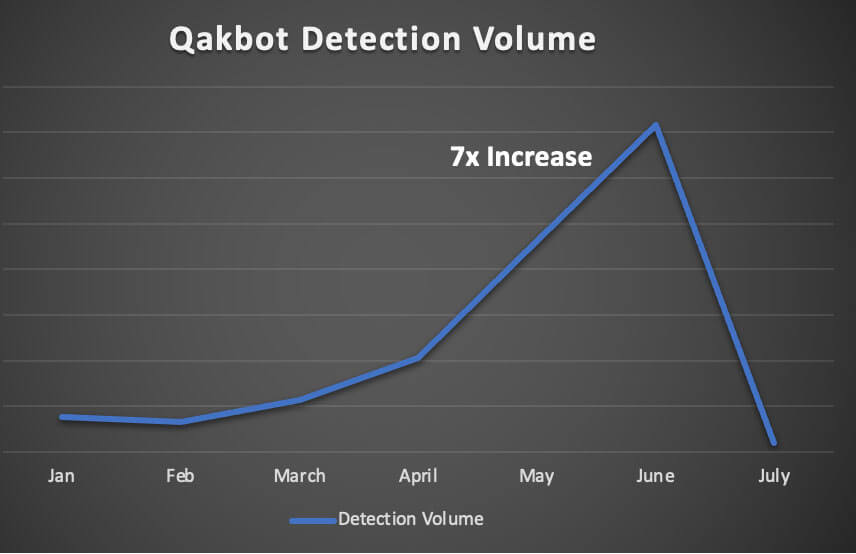

Figure 2 – QBot Email Detection Volume
Figure 2 – QBot Email Detection Volume

As depicted in Figure 2, Trellix Email Security monitoring has noticed a substantial seven-fold increase in QBot detections from January 2023 to June 2023. With such a sharp surge in detections, the prevalence is concerning as the Tactics, Techniques and Procedures (TTPs) continue to evolve as the malware expands its reach. A considerable decline in the volume of attacks has been observed in the subsequent month of July.

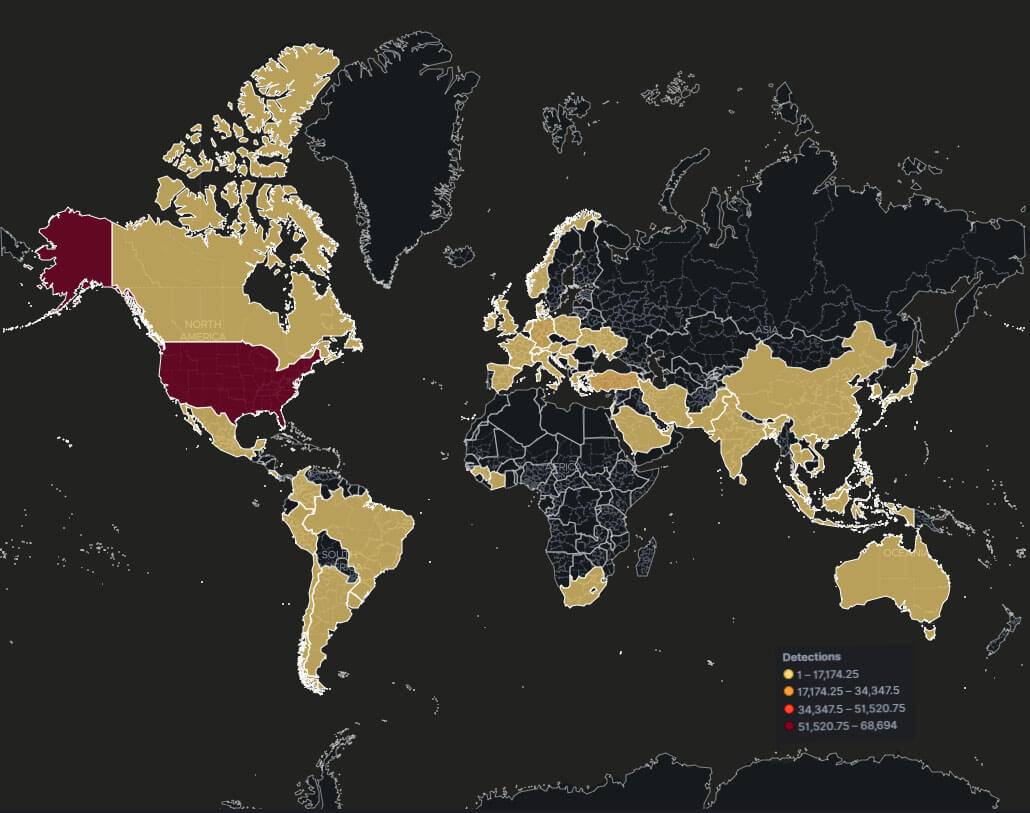

The geographical heatmap for January to June 2023, as shown in Figure 3, reveals the widespread presence of Qakbot attacks globally. However, it indicates that the United States experienced the highest prevalence of these attacks during this period.

Figure 3 – Geographical Heatmap for QakBot attacks
Figure 3 – Geographical Heatmap for QakBot attacks

Evolution to JavaScript (.JS) Delivery Tactic

Beginning in April 2023, Trellix Advanced Research Center identified a significant upward trend involving the utilization of JS files as an initial infection vector used by QBot malware. This attack scenario delivers the JS files from an embedded URL contained in a phishing email; the URL leads the victim to a compromised site used by the threat actor to host the JS file.

Threat actors have been observed employing compromised websites to host these malicious JS files, implementing various evasion techniques including obfuscation, geo-IP evasion, blank content evasion, and redirect evasion. These tactics are strategically employed to evade detection and heighten the effectiveness of the QBot campaign.

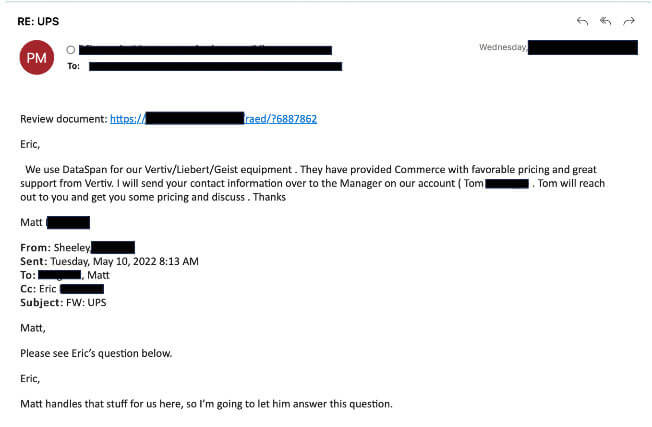

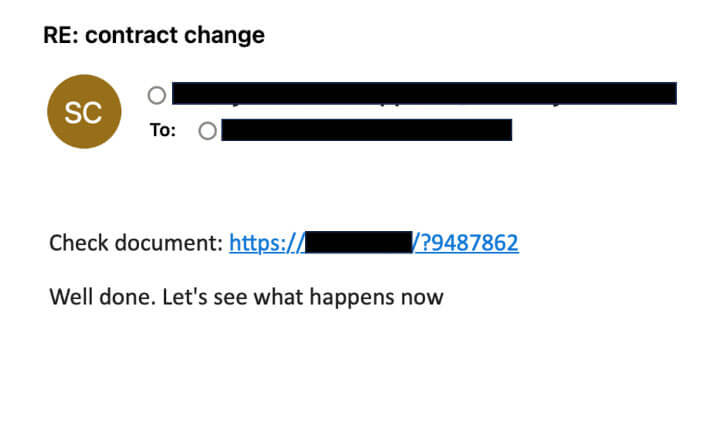

Presented in Figure 4 below are screenshots that illustrate the initial email threat vector commonly employed in Qbot campaigns. These deceptive emails cleverly masquerade as legitimate corporate communications, often featuring generic subjects such as "UPS," "Contract Change," "Order Update," and similar. These seemingly innocuous emails entice recipients to click on a URL, which leads to the download of a malicious JS file. It is crucial to exercise caution and remain vigilant when encountering such emails to avoid falling victim to Qbot and its malicious activities.

Figure 4 – Malicious Emails related to QBot Malware
Figure 4 – Malicious Emails related to QBot Malware
Figure 4 – Malicious Emails related to QBot Malware

Malicious URLs delivering JS Files

During our analysis phase it was observed that the malicious URLs contained a distinctive pattern consisting of the following:


These URLs consist of the domain name, top-level domain (TLD), an alphabet-only string, a question mark symbol, and a number.

The following is the regular expression for the URL pattern -

https?\:\/\/[^\/]+\/[a-zA-z]*\/\?[0-9]+$

The campaign employed several evasion tactics to enhance the effectiveness of its malicious URLs. These tactics included the use of compromised domains, redirect evasion, blank response evasion, and Geo-IP evasion. By leveraging compromised domains, the threat actors disguised their URLs as legitimate and trustworthy, increasing the chances of successful infection.

QakBot Malware Execution Cycle

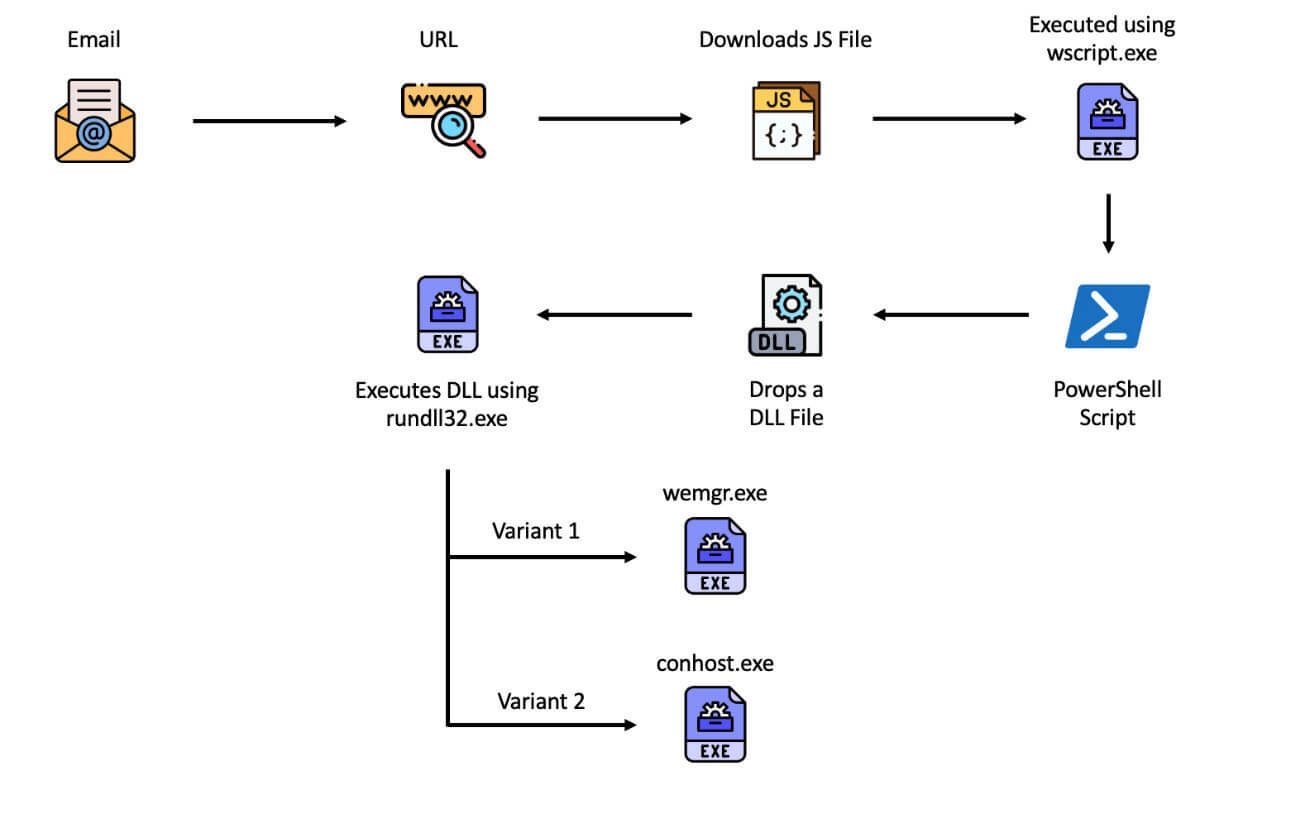

Figure 5 – Execution Cycle
Figure 5 – Execution Cycle

The QBot malware employs sophisticated obfuscation techniques in its JavaScript file. Once downloaded and opened within a Windows environment, the file is executed through the wscript.exe application. This triggers the invocation of an encoded PowerShell command, which is responsible for dropping a malicious DLL file. Finally, the DLL file is executed using the rundll32.exe application.

Let's now dive into details of each element of the execution cycle.

JavaScript Payload

The JavaScript file involved in the QBot execution cycle is deliberately designed to be intricate and challenging to analyze. It utilizes various obfuscation techniques, including the inclusion of bogus code, encoded strings, function calls, and dynamically generated code. These tactics aim to impede security researchers' efforts to de-obfuscate and comprehend the code's flow.

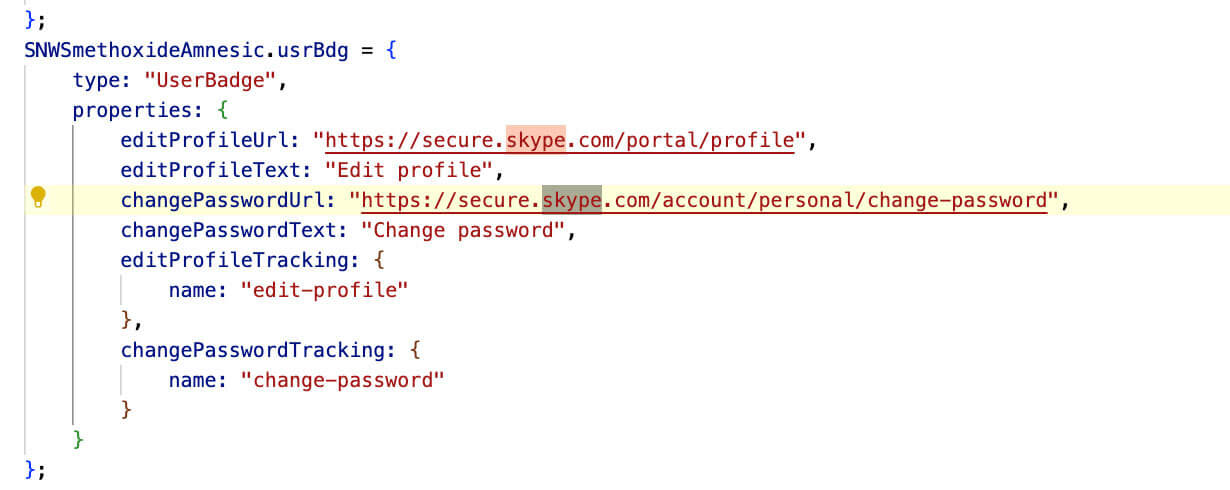

Additionally, the file incorporates numerous strings, tags, classes, and URLs associated with Skype. This inclusion serves as an additional tactic to perplex researchers and scan engines by creating the illusion of a script linked to Skype, adding a layer of confusion to the analysis process.

Figure 6 – Skype References in the Javascript Payload
Figure 6 – Skype References in the Javascript Payload

On attempting to load a JavaScript (JS) file as part of an HTML file, there is no content displayed in the browser, and no network calls are made.

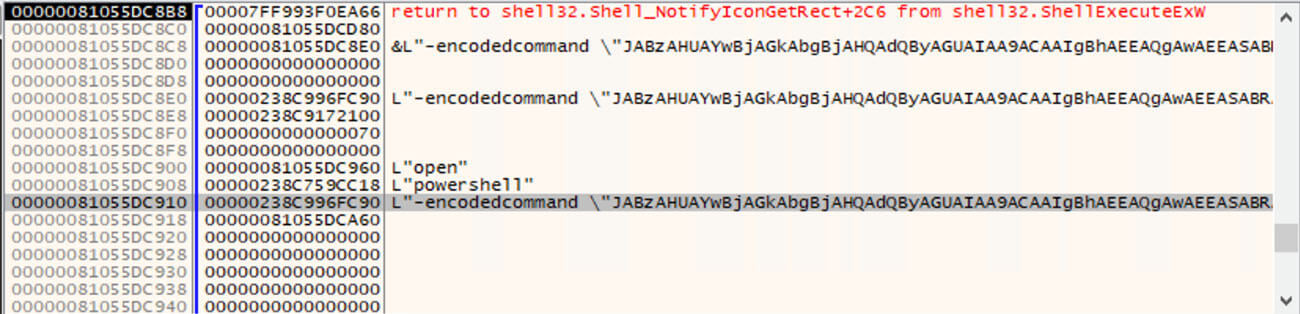

However, when the file is opened in a Windows environment using wscript.exe, it executes an encoded PowerShell command using the ShellExecuteExW function of the Shell32.dll file.

Figure 7 – PowerShell command being called by the JS File
Figure 7 – PowerShell command being called by the JS File

PowerShell Command

Upon decoding the PowerShell command, it reveals an obfuscated PowerShell script that employs various techniques such as function calls, bogus variables, and encoding.

These techniques are implemented to increase the complexity of the script and make it more challenging for researchers to reverse engineer. Additionally, within the script, there is another encoded PowerShell command present, further adding to the layers of obfuscation.

Figure 8 – PowerShell Obfuscated Script
Figure 8 – PowerShell Obfuscated Script

After removing all the bogus strings, the final PowerShell code is as follows:

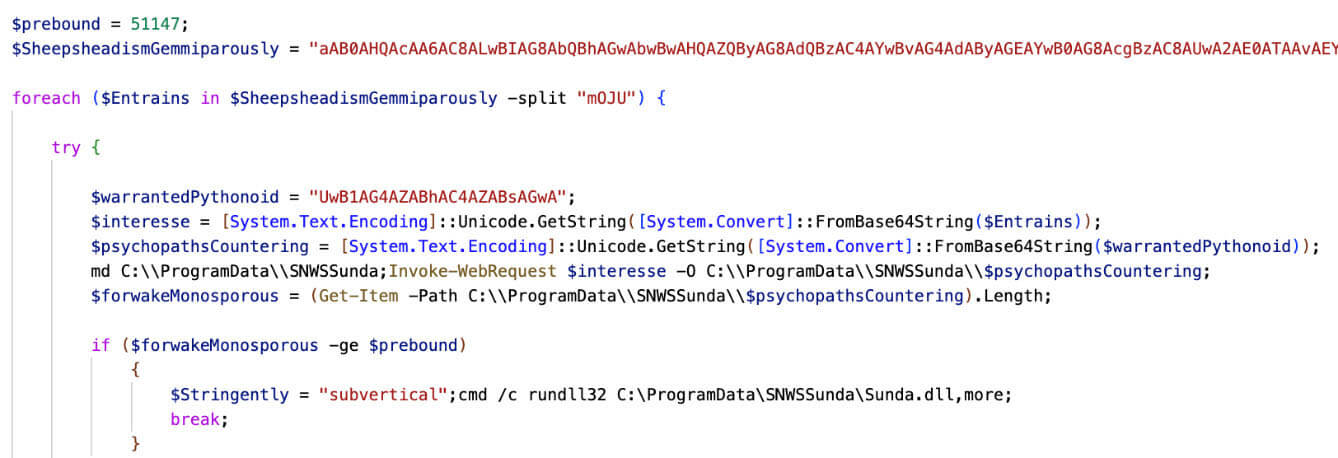

Figure 9 – PowerShell First Level De-Obfuscated Script
Figure 9 – PowerShell First Level De-Obfuscated Script

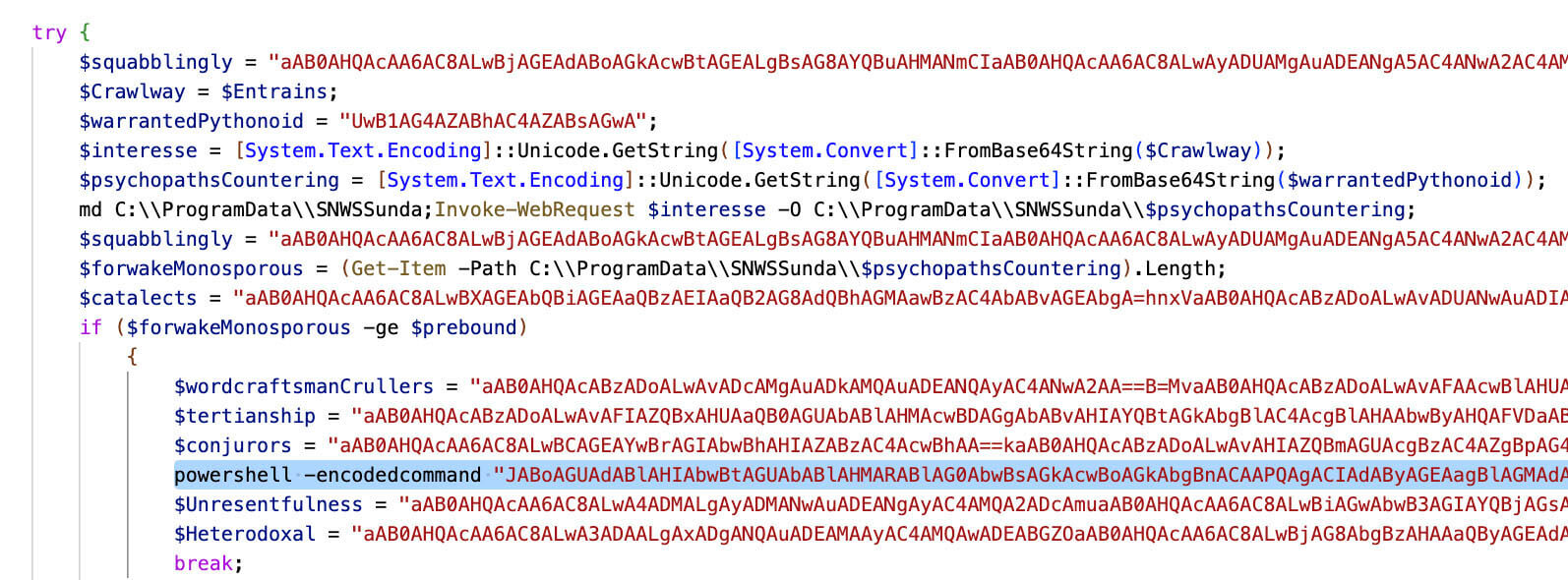

Upon further deobfuscating the script, the following screenshot presents the code. The PowerShell script follows this flow:

  • The script creates a directory at "C:\Program Data" using the New-Item cmdlet or similar commands.
  • It establishes connections with specific URLs mentioned in the code using the Invoke-WebRequest cmdlet or similar methods. The script then saves the response from these URLs to a DLL (Dynamic Link Library) file in the directory created in step 1.
  • The script checks the length of the DLL file using the Get-Item cmdlet or similar commands. If the length of the DLL file exceeds a certain threshold specified in the code, it proceeds with the execution of the DLL file using the rundll32.exe utility or a similar method.

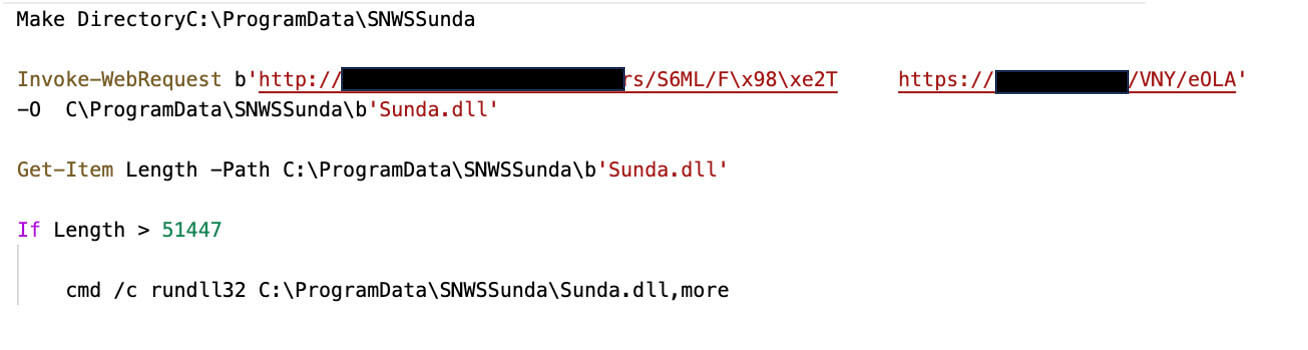

Figure 10 – PowerShell Final De-Obfuscated Script
Figure 10 – PowerShell Final De-Obfuscated Script

As mentioned above, the JS file employs many anti-anti-analysis techniques, from the URLs called by the PowerShell script, not all consistently returning a valid DLL file. In some cases, the content of the DLL file included HTML error pages or were often empty.

If the file is valid, it proceeds to de-obfuscate the encoded PowerShell command and then calls conhost.exe to attach to the logged-in console user with the following command:

\??\C:\Windows\system32\conhost.exe 0xffffffff -ForceV1

Subsequently, the DLL is executed using rundll32.

Furthermore, this process encompasses several additional discovery tasks:

  • The rundll32 binary is responsible for enumerating running processes.
  • WMI (Windows Management Instrumentation) executes Windows Error Reporting Manager (wermgr.exe) to collect information including:
    • Network configuration via ipconfig
    • User Discovery via whoami
    • Query system BIOS
    • Check installed security software
    • Windows Error Reporting Fault (werfault.exe) queries user, process ID, and session ID.

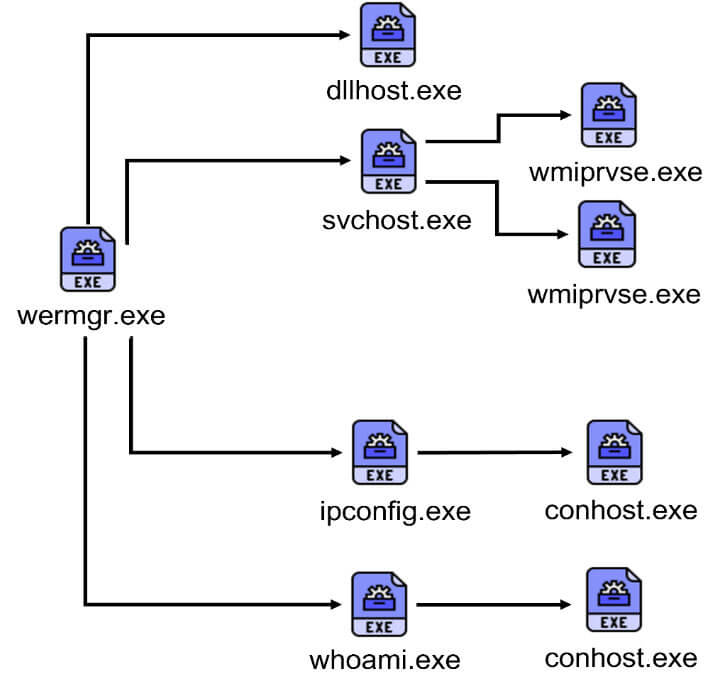

The final task for the wermgr executable is to capture system information using the BitBlt API, which allows for data capture and exfiltration on the infected device.

Figure 11
Figure 11
(Attribution at the bottom)

DLL Analysis

The behavior of the DLL executed by the malware involves a series of carefully orchestrated steps designed to carry out its malicious intent. To begin with, the DLL utilizes the ROR13 algorithm to compute the addresses of VirtualAlloc and VirtualProtect, granting it control over memory allocation and protection mechanisms.

Further into its execution, the DLL decrypts a heavily obfuscated shellcode, a technique employed to evade detection and analysis. Once the shellcode is decrypted, it is invoked to decrypt and decompress the Qbot PE payload, a critical phase in the malware's operation.

Figure 12 – Memory Allocation of the payload
Figure 12 – Memory Allocation of the payload

After successfully executing the payload, the DLL then returns to its initial state and proceeds to call the export entry of the Qbot PE, ensuring seamless integration and activation of the malevolent payload.

Of notable significance is that the payloads share identical optional targets for process injection. This suggests that the malware is tailored to exploit specific processes or applications, likely to facilitate its spread and maintain persistence.

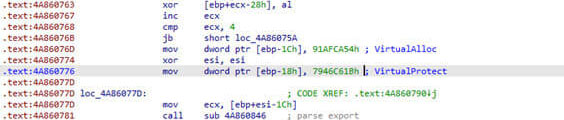

Figure 13 – Process Injection
Figure 13 – Process Injection

The complex and sophisticated nature of the DLL's behavior demands heightened vigilance and robust cybersecurity measures to detect, mitigate, and neutralize this threat effectively. Organizations and individuals alike must remain proactive in safeguarding their systems against such advanced malware attacks.

POST Data Decryption

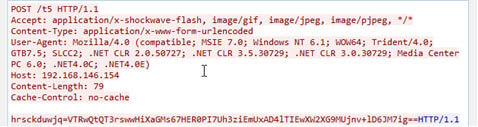

Figure 14 – Encrypted Post Request
Figure 14 – Encrypted Post Request

The malware demonstrates a consistent and recognizable pattern in its network communication by sending out network callouts to a Command-and-Control (C2) server. Remarkably, the two Qbot payloads employed a specific salt for the RC4 key: "SoNuce]ugdiB3c[doMuce2s81*uXmcvP".

The decryption process for POST data associated with Qbot is well-documented and follows a distinct sequence. Initially, it takes the first 0x10 bytes of the data. Subsequently, these 0x10 bytes are prepended to the salt, forming a new sequence: "SoNuce]ugdiB3c[doMuce2s81*uXmcvP" + [first 0x10 bytes].

Next, the algorithm computes the SHA1 hash of this new combined data, resulting in a unique SHA1 value. This SHA1 value is then employed as the RC4 key for the decryption process.

This standardized and consistent approach to POST data decryption is indicative of the malware's well-engineered architecture and serves as a recognizable signature for identifying and analyzing Qbot-related activities. Organizations and security experts can leverage this information to strengthen their defense mechanisms and proactively detect and counter potential Qbot infections.

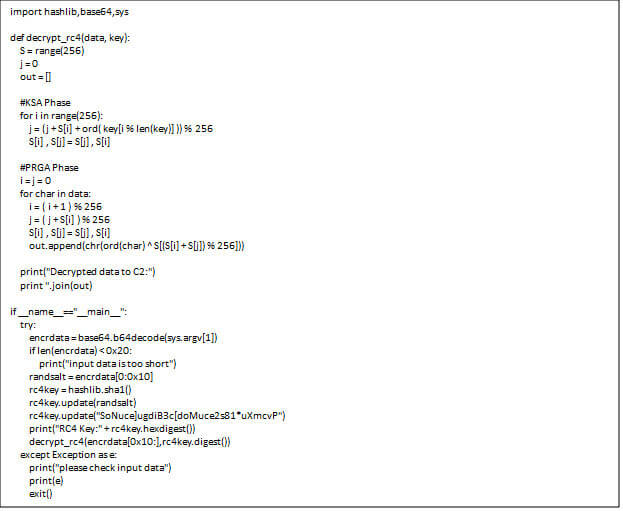

Python script for POST data decryption:

Figure 15 – Python Script for Post Data Decryption
Figure 15 – Python Script for Post Data Decryption

Python script usage:

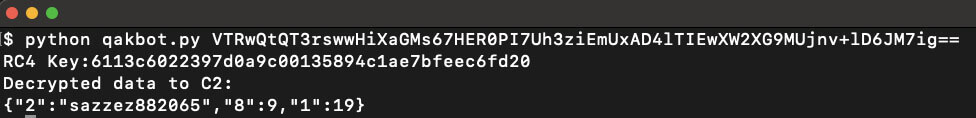

Figure 16 – Python Script Usage
Figure 16 – Python Script Usage

For readers who are interested in delving even deeper into the malware's execution cycle, the Trellix Advanced Research Center offers an in-depth analysis in their blog at the following link - https://www.trellix.com/en-in/about/newsroom/stories/research/qakbot-evolves-to-onenote-malware-distribution.html

Key Behaviors (TTPs)

This is a list of some of the threat behaviors that can be leveraged for detection.

Tactical Goal
ATT&CK Technique (Technique ID)
Threat Actions/Behaviors
Initial Access
Spear-phishing Link
(T1566.002)
Users targeted with email impersonating legitimate communication with malicious link
Execution
PowerShell (T1059.001)

Windows Command Shell (T1059.003)

JavaScript (T1059.007)

Malicious Link (T1204.002)
Obfuscated PowerShell commands carry out execution

Windows Command Shell used to execute commands and spawn other processes

JavaScript payload containing malicious encoded commands

User clicks malicious link
Defense Evasion
Obfuscated Files of Information (T1027)

De-obfuscate/Decode Files or Information (T1140)

RunDLL32 (T1218.011)
wcript.exe executes base64-encoded PowerShell 


wscript.exe executes base64-encoded PowerShell 


rundll32 spawned to execute dll file
Discovery
System Owner/User Discovery (T1033)

Windows Management Instrumentation (T1047)

Process Discovery (T1057)


Query Registry (T1112)


Security Software> Discovery (T1518.001)

System Location Discovery (T1614)
whoami


wermgr.exe queries BIOS properties via WMI


Process enumeration via RunDLL32


HKLM\System\CurrentControlSet\Control\Session Manager\Environment\__PSLockdownPolicy

wermgr.exe tries to detect antivirus software via WMI query: "SELECT * FROM AntiVirusProduct"

Geographic Location Discovery
Collection
Screen Capture (T1113)
wermgr.exe takes a screenshot using BitBlt API
Command and Control
Application Layer Protocol (T1071)

Ingress Tool Transfer (T1105)
PowerShell Download of Executable via HTTP


PowerShell Download of Executable via HTTP

Indicators of Compromise (IOC)

Check out the list of indicators of compromise from the recent QakBot campaign, observed by Trellix Advanced Research: QakBot IOCs

Trellix Product Protections

Trellix Security Products offers robust protection against Qakbot campaigns through a multi-layered approach. This includes meticulous checks on URLs, emails, networks, and attachments, providing reliable detection and prevention of potential threats. It is an effective way to keep your systems safe and secure from harm. Our product continuously monitors and updates its threat intelligence database to stay ahead of new and evolving threats.

The following is a subset of the Trellix Security detections that have been observed for the ongoing campaigns:

Product
Detection Signature
Trellix Network Security
Trellix VX
Trellix Cloud MVX
Trellix File Protect
Trellix Malware Analysis
Trellix SmartVision
Trellix Email Security
Trellix Detection as a Service
Other Products:
Trojan.Artemis.FEC4
Trojan.Win32.Leonem.FEC3
Trojan.JS.Heuristic.FEC3
Trojan.Qakbot
Suspicious Network Activity
Suspicious File Activity
Suspicious Process PowerShell Activity
Suspicious Process Launching Activity
Suspicious Network By PowerShell
Trellix Endpoint Security (HX):
QAKBOT(FAMILY)
QAKBOT A (FAMILY)
QAKBOT B (FAMILY)
QAKBOT C (FAMILY)
QAKBOT D (FAMILY)
QAKBOT E (FAMILY)
QAKBOT F (FAMILY)
QAKBOT G (FAMILY)
QAKBOT H (FAMILY)
QAKBOT I (FAMILY)
QAKBOT J (FAMILY)
QAKBOT K (FAMILY)
QAKBOT L (FAMILY)
QAKBOT M (FAMILY)
POWERSHELL DOWNLOAD AT SUSPICIOUS PATH (METHODOLOGY)
POSSIBLE PE INJECTION VIA RUNDLL32 (METHODOLOGY)
REGISTRY RUN KEY PERSISTENCE (METHODOLOGY)
Trojan.GenericKD.67696429
Trojan.GenericFCA.Script.25118
Trojan.GenericKD.67697230
Trojan.GenericKD.67696480
Trojan.GenericKD.67690943
Trojan.GenericFCA.Script.25109
Trojan.GenericKD.67689721
Trojan.GenericKD.67676968
Trojan.Generic.33993462
Trojan.GenericKD.67697202

Conclusion

Our thorough research has unveiled the fascinating evolution of Qakbot, showcasing its adoption of JavaScript files as a means to distribute malware. It's worth noting that these tactics aren't exclusive to Qakbot alone; other malicious actors can employ similar strategies to elude security measures. This underscores the pressing importance of maintaining a vigilant stance against these looming threats.

Although the authorities have successfully dismantled Qakbot, the persistently evolving landscape of cyber threats remains a significant concern. This serves as a stark reminder of the continuous need for vigilance and the reinforcement of our security strategies. The key lies in taking proactive and meticulous steps, which can empower both organizations and individuals to construct a robust defense capable of navigating the ever-changing realm of cyber risks.
