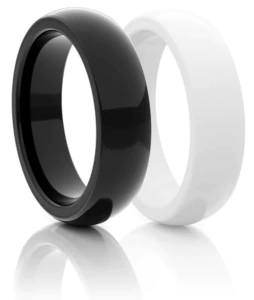

The Cloning of The Ring - Who Can Unlock Your Door?
By Eoin Carroll · January 06, 2020
Steve Povolny contributed to this report.
McAfee’s Advanced Threat Research team performs security analysis of products and technologies across nearly every industry vertical. Special interest in the consumer space and Internet of Things (IoT) led to the discovery of an insecure design with the McLear NFC Ring a household access control device. The NFC Ring can be used to interact with NFC-enabled door locks which conform to the ISO/IEC 14443A NFC card type. Once the NFC Ring has been paired with the NFC enabled door lock, the user can access their house by simply placing the NFC Ring within NFC range of the door lock.
McLear originally invented the NFC Ring to replace traditional keys with functional jewelry. The NFC Ring uses near field communication (NFC) for access control, to unlock and control mobile devices, share and transfer information, link people and much more. McLear NFC Ring aims to redefine and modernize access control to bring physical household security through convenience. Their latest ring also supports payment capability with McLear Smart Payment Rings, which were not in scope for this research.
Identity is something which uniquely identifies a person or object; an NFC tag is a perfect example of this. Authentication can be generally classified into three types; something you know, something you have and something you are. A NFC Ring is different from the general NFC access tag devices (something you have) as the Ring sits on your finger, so it is a hybrid authentication type of something you have and something you are. This unique combination, as well as the accessibility of a wearable Ring with NFC capabilities sparked our interest in researching this product as an NFC-enabled access control device. Therefore, the focus of our research was on NFC Ring protection against cloning as opposed to the door lock, since NFC access control tags and door locks have been well-researched.
The research and findings for this flaw were reported to McLear on September 25, 2019. To date, McAfee Advanced Threat Research has not received a response from the vendor.
Duplicating Keys Beyond the Hardware Store
In the era of Internet of Things (IoT), the balance between security and convenience is an important factor to get right during the concept phase of a new product and the bill of materials (BOM) selection. The hardware selection is critical as it often determines the security objectives and requirements that can be fulfilled during design and implementation of the product lifecycle. The NFC Ring uses an NFC capable Integrate Circuit (IC) which can be easily cloned and provides no security other than NFC proximity. The NFC protocol does not provide authentication and relies on its operational proximity as a form of protection. The problem with NFC Tags is that they automatically transmit their UID when in range of NFC device reader without any authentication.
Most consumers today use physical keys to secure access to their household door. The physical key security model requires an attacker to get physical access to the key or break the door or door lock. The NFC Ring, if designed securely, would provide equal or greater security than the physical key security model. However, since the NFC Ring can be easily cloned without having to attain physical access to the Ring, it makes the product’s security model less secure than a consumer having a physical key.
In this blog we discuss cloning of the NFC Ring and secure design recommendations to improve its security to a level equal to or greater than existing physical keys.
NFC Ring Security Model and Identity Theft
All McLear non-payment NFC Rings using NTAG216 ICs are impacted by this design flaw. Testing was performed specifically on the OPN which has an NTAG216 IC. The NFC Ring uses the NTAG 216 NFC enabled Integrated Circuit (IC) to provide secure access control by means of NFC communication.
The NFC protocol provides no security as it’s just a transmission mechanism. The onus is on product owners to responsibly design and implement a security layer to meet the security objectives, capable of thwarting threats identified during the threat modeling phase at concept commit.
The main threats against an NFC access control tag are physical theft and tag cloning by NFC. At a minimum, a tag should be protected against cloning by NFC; with this research, it would ensure the NFC Ring provides the same level of security as a physical key. Ideal security would also protect against cloning even when the NFC Ring has been physically stolen which would provide greater security than that of a physical key.
The NTAG216 IC provide the following security per the NFC Ring spec:
- Manufacturer programmed 7-byte UID for each device
- Pre-programmed capability container with one-time programmable bits
- Field programmable read-only locking function
- ECC based originality signature
- 32-bit password protection to prevent unauthorized memory operations
The NFC Ring security model is built on the “Manufacturer programmed 7-byte UID for each device” as the Identity and Authentication with the access control principle or door lock. This 7-byte UID (unique identifier) can be read by any NFC enabled device reader such as a proxmark3 or mobile phone when within NFC communication range.
The NFC Ring security model can be broken by any NFC device reader when they come within NFC communication range since the static 7-byte UID is automatically transmitted without any authentication. Once the 7-byte UID has been successfully read, a magic NTAG card can be programmed with the UID, which forms a clone of the NFC Ring and allows an attacker to bypass the secure access control without attaining physical access to the NFC Ring.
The NFC Ring is insecure by design as it relies on the static 7-byte UID programmed at manufacture within the NTAG216 for device identity and authentication purposes. The NFC Ring security model relies on NFC proximity and a static identifier which can be cloned.
In addition, we discovered that the UIDs across NFC Rings maybe predictable (this was a very small sample size of three NFC Rings):
- NFC Ring#1 UID 04d0e722993c80
- NFC Ring#2 UID 04d24722993c80
- NFC Ring#3 UID 04991c4a113c80
There is only a 22-byte difference between the UID of NFC Ring#1 and NFC Ring#2 (0x24-0x0e). By social engineering when a victim purchased their NFC Ring, an attacker could purchase a significant sample size of NFC Rings around the same time and possibly brute force their NFC Ring UID.
Social Engineering
Social Engineering consists of a range of techniques which can be used through human interaction for many malicious purposes such as identity theft. In the case of the NFC Ring the goal is to steal the user’s identity and gain access to their home. Reconnaissance can be performed online to gain background information such as what type of technology is being used by the victim for their home access.
One of the most common exchanges of technology today has become the passing of a phone between two untrusted parties to take a picture. The NFC Ring social engineering attack could be as simple as requesting the victim to take a picture with the attacker-supplied phone. The victim-as-helpful-photographer holds the attacker’s phone, which can read NFC tags and could be equipped with a custom Android app to read the NFC Ring UID, all transparent to the victim while they are snapping away. There is no sign to the victim that their NFC Ring is being read by the phone. It is recorded in the system log and cannot be viewed until a USB cable is attached with required software. Once the Ring is compromised, it can be reprogrammed on a standard writable card, which can be used to unlock smart home locks that partner with this product. The victim’s home is breached.
How It’s Done: NFC Ring Cloning
To successfully clone an NFC Tag, one must first identify the Tag type. This can be done by looking up the product specifications in some cases, or verifying by means of an NFC device reader such as a proxmark3.
From the NFC Ring specs we can determine most of the required tag characteristics:
- IC Model: NTAG216
- Operating Frequency: 13.56Mhz
- ISO/IEC: 14443A
- User writable space: 888 bytes
- Full specifications
In addition, by communicating with a proxmark3 attackers can physically verify the NFC Tag characteristics and obtain the UID which is required for cloning.
The most straightforward method to stealing the unique identifier of the Ring would be through a mobile phone. The following steps were taken in the below demo:
- Reading of NFC Ring with proxmark3 and cloning NTAG21x emulator card
- Setting attacker’s phone to silent to prevent NFC Tag detection sound
- Running our customized Android app to prevent Android activity popup when NFC Tag detected and read.
Mitigation Secure Design Recommendations
Lock the door. The existing insecure design can be mitigated by using NFC Doorlock password protection in combination with the NFC Ring for two factor authentication.
Authenticate. NFC Ring designers must mandate a secure PKI design with an NFC Tag which contains a crypto module that provides TAG authentication. The NFC Ring secure design must mandate a security layer on top of NFC to access control device manufacturers to ensure secure and trustworthy operation.
Randomize UIDs. In addition, the NFC designers must ensure they are not manufacturing NFC Rings with sequential UIDs which may be predictable with purchase date.
Consumer Awareness
To make customers aware of the security risks associated with products available on the market, product manufacturers should clearly state the level of security which their product provides in comparison with the technology or component they claim to be advancing. Are customers holding the master key to unlock their door, and are there duplicates?
In the case of the NFC Ring, while convenient, it clearly does not provide the same level of security to consumers as a physical key. This decrease in security model from a physical key to a NFC Ring is not due to technology limitations but due to an insecure design.
