GuLoader: The NSIS Vantage Point

GuLoader is an advanced shellcode downloader infamous for using anti-analysis tricks to evade detection and obstruct reverse engineering. As of this writing, the GuLoader campaign is aggressively ongoing. Trellix’s customers in the e-commerce industry located in South Korea and the United States were heavily targeted by the GuLoader operators. In this blog, we cover the multiple archive types used by threat actors to trick users into opening an email attachment. We also cover the progression of its distribution inside NSIS (Nullsoft Scriptable Install System) executable files by showing the obfuscation and string encryption updates through the year 2022.

Why NSIS Executable Files?

NSIS is an open-source system used to develop Windows installers. Below are some of its notable capabilities.

  • Script-based and completely free for any use
  • Malicious code and executables can be packaged together with legitimate installers (Figure 1)
  • Can directly call Windows APIs, and plugins are already available for loading .NET modules, MSSQL and others (Figure 2)
  • Like VBA, JavaScript and other script-based malware, obfuscation can be applied to evade static signature detections

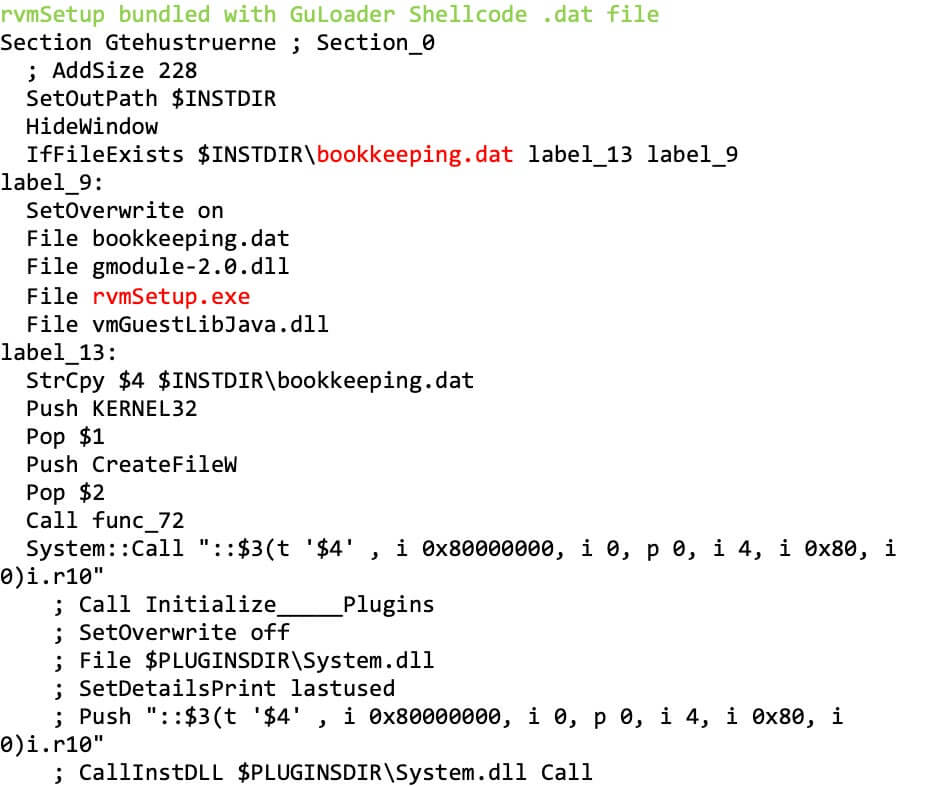

Figure 1: GuLoader shellcode bundled with a legitimate setup in an NSIS executable
Figure 1: GuLoader shellcode bundled with a legitimate setup in an NSIS executable

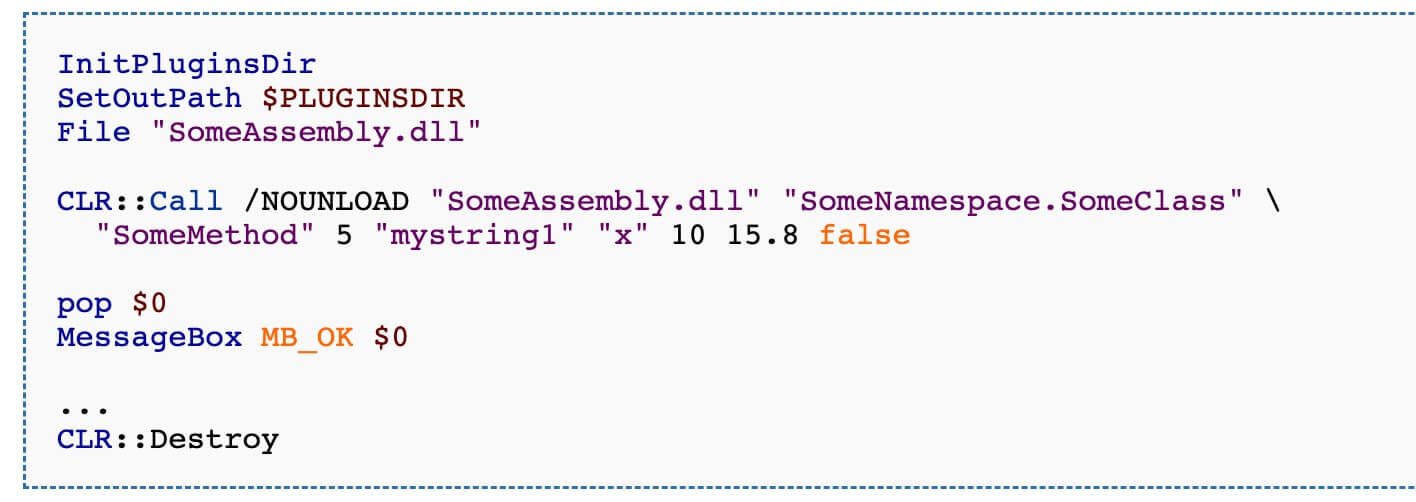

Figure 2: An example of loading .NET module from nsis.sourceforge.io
Figure 2: An example of loading .NET module from nsis.sourceforge.io

A compiled NSIS executable can be identified with a hex editor. The .ndata section must exist and the string “Nullsoft Inst” must be located at offset 8 from the overlay (Figure 3). Compiler and packer detectors can also be used to identify NSIS executables such as PEiD and DIE (Detect it Easy).

 Figure 3: NSIS compressed data in PE file overlay
Figure 3: NSIS compressed data in PE file overlay

NSIS Malspam Campaign

In November 2021, before threat actors’ use of NSIS executable files, Trellix acquired the zip file 703254254bf23f72b26f54a936cda496. The zip file contains a Word Document with a macro. The macro drops a shortcut LNK and a VBS script. The VBS script drops a PE file and then the PE file loads the GuLoader shellcode to download a payload (Figure 4).

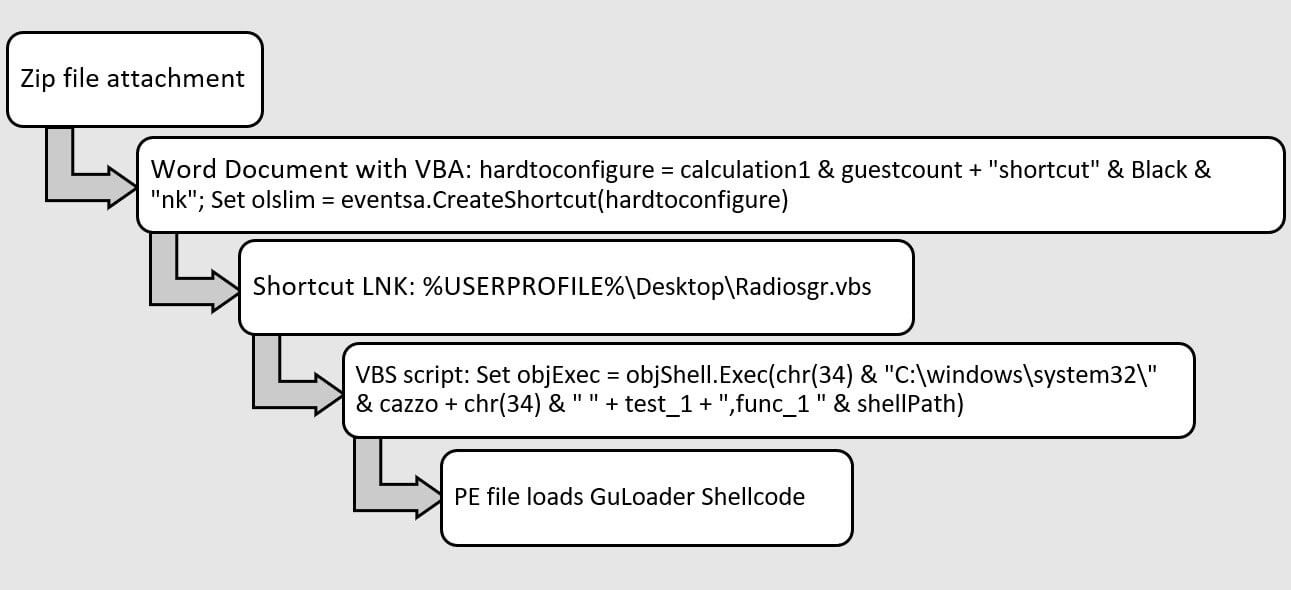

 Figure 4: Execution flow from zip file attachment to GuLoader
Figure 4: Execution flow from zip file attachment to GuLoader

In 2022, threat actors transitioned to NSIS executable files for loading the GuLoader shellcode. For example, the NSIS executable file is embedded in a zip file and an email lures the user to open a statement of account (Figure 5). In another variant, the NSIS executable is embedded in an ISO image, and it pretends to be a sales inquiry for a quotation of products (Figure 6).

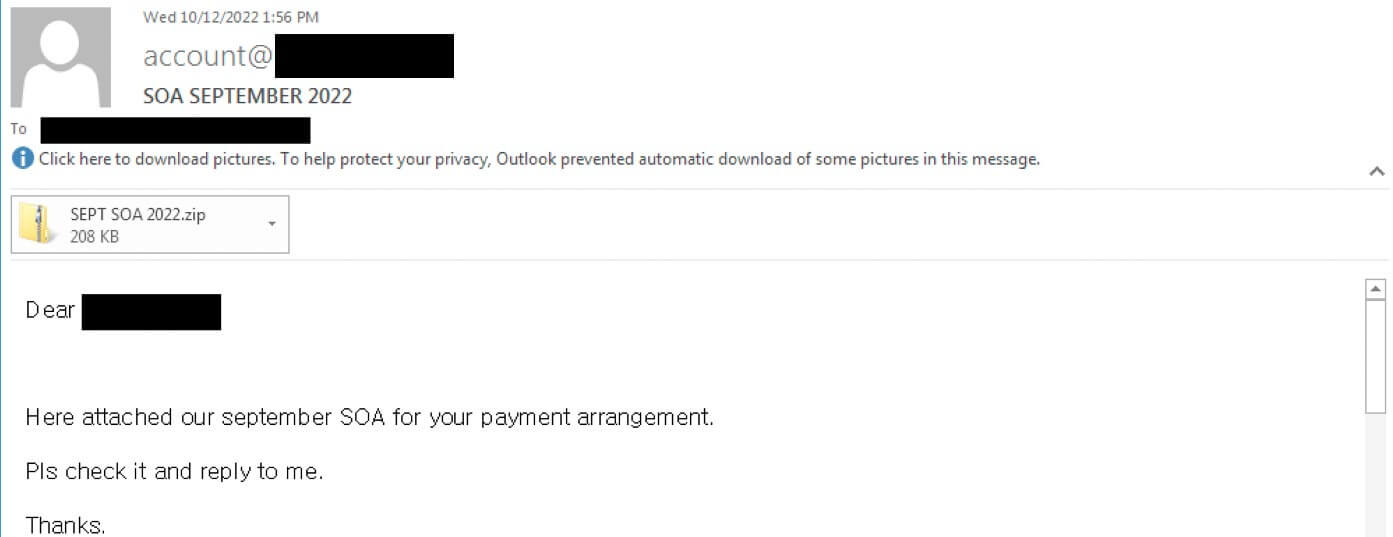

 Figure 5: GuLoader NSIS in Zip File
Figure 5: GuLoader NSIS in Zip File

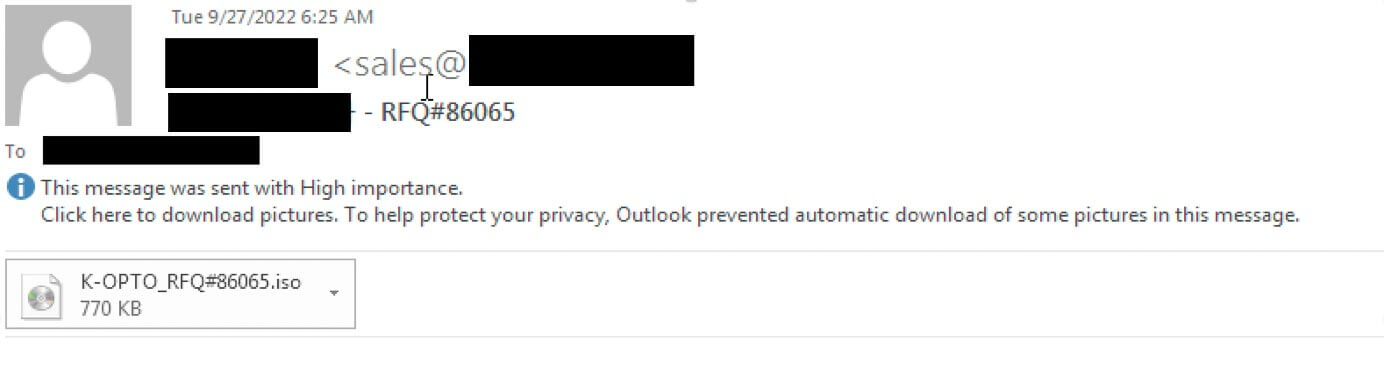

 Figure 6: GuLoader NSIS in ISO image
Figure 6: GuLoader NSIS in ISO image

Embedding malicious executable files in archives and images can help threat actors evade detection. Throughout 2022, the variations of archive and images used to embed NSIS executable files we observed in the wild are enumerated in Table 1.

Archives and Images used for NSIS Executable Files

Rar Archive

ISO image

Dropbox Link to Zip Archive

Zip Archive has embedded ISO image

Zip with password

URL to CAB file with embedded CAB file

GZip Archive

ISO image with embedded RarSFX

XXE Archive

LZH Archive

ACE Archive

Table 1: Email attachment variations

In the first two weeks of December 2022, Trellix detected a minimum of 5,000 events related to GuLoader email attachments. At least 15 Trellix customers in 13 countries were targeted across 10 industries (Figure 7 and Figure 8).

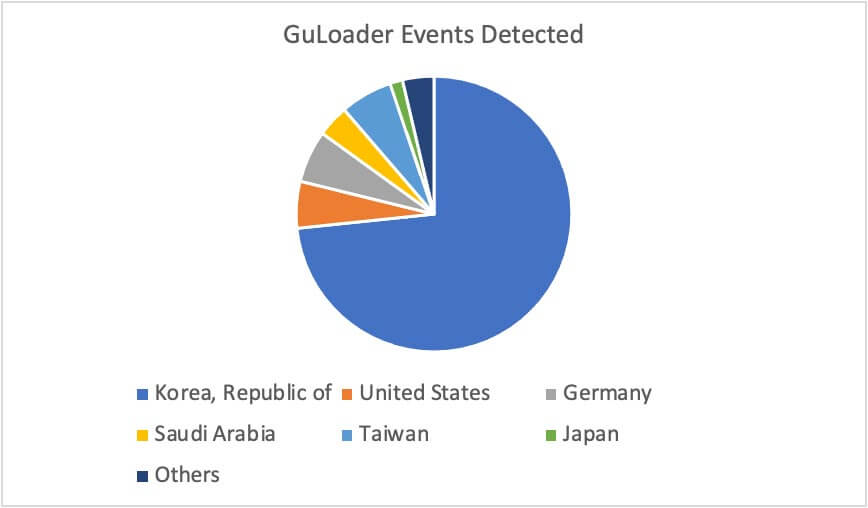

Figure 7: GuLoader events in targeted countries
Figure 7: GuLoader events in targeted countries

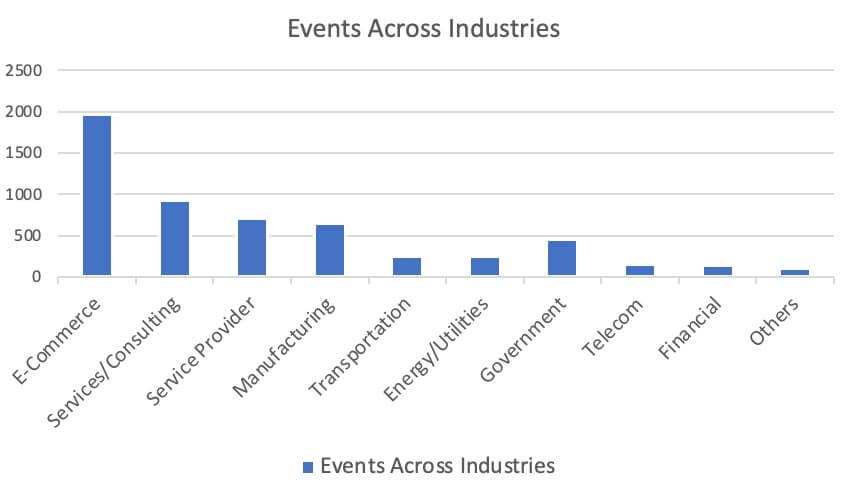

Figure 8: GuLoader events across industries
Figure 8: GuLoader events across industries

NSIS Obfuscation Progression

As threat actors began to transition to NSIS executable files in February 2022, the NSIS scripts were not obfuscated. The NSIS script loads a .dat file in a straightforward manner and executes the contents of the .dat file as shellcode. In some samples, the NSIS script calls CreateFileA, CreateFileMappingA, MapViewofFile and EnumDisplayMonitors which has a callback function to run the shellcode (Figure 9).

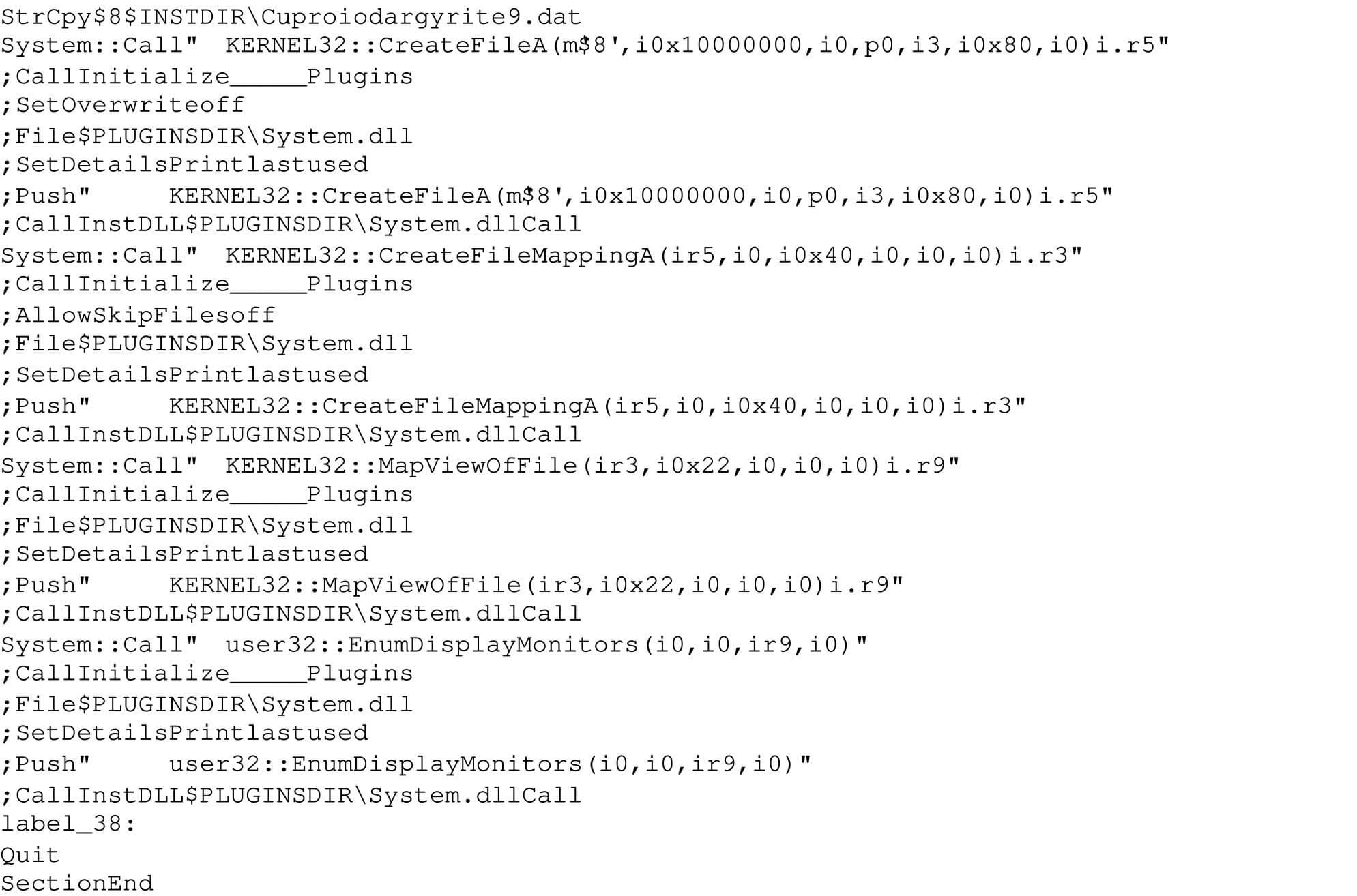

Figure 9: Straightforward NSIS script
Figure 9: Straightforward NSIS script

Within a month of February 2022, NSIS scripts were obfuscated. Shortly thereafter, around April 2022, two additional advancements were observed. First, the shellcode filename extension was changed from .dat to a random filename extension. Second, the obfuscated NSIS script introduced an XOR operation to decrypt another stage of NSIS code and garbage code were inserted (Figure 10). The decrypted NSIS code then calls CreateFileA, VirtualAlloc, ReadFile and CallWindowProcW to run the GuLoader shellcode (Figure 11).

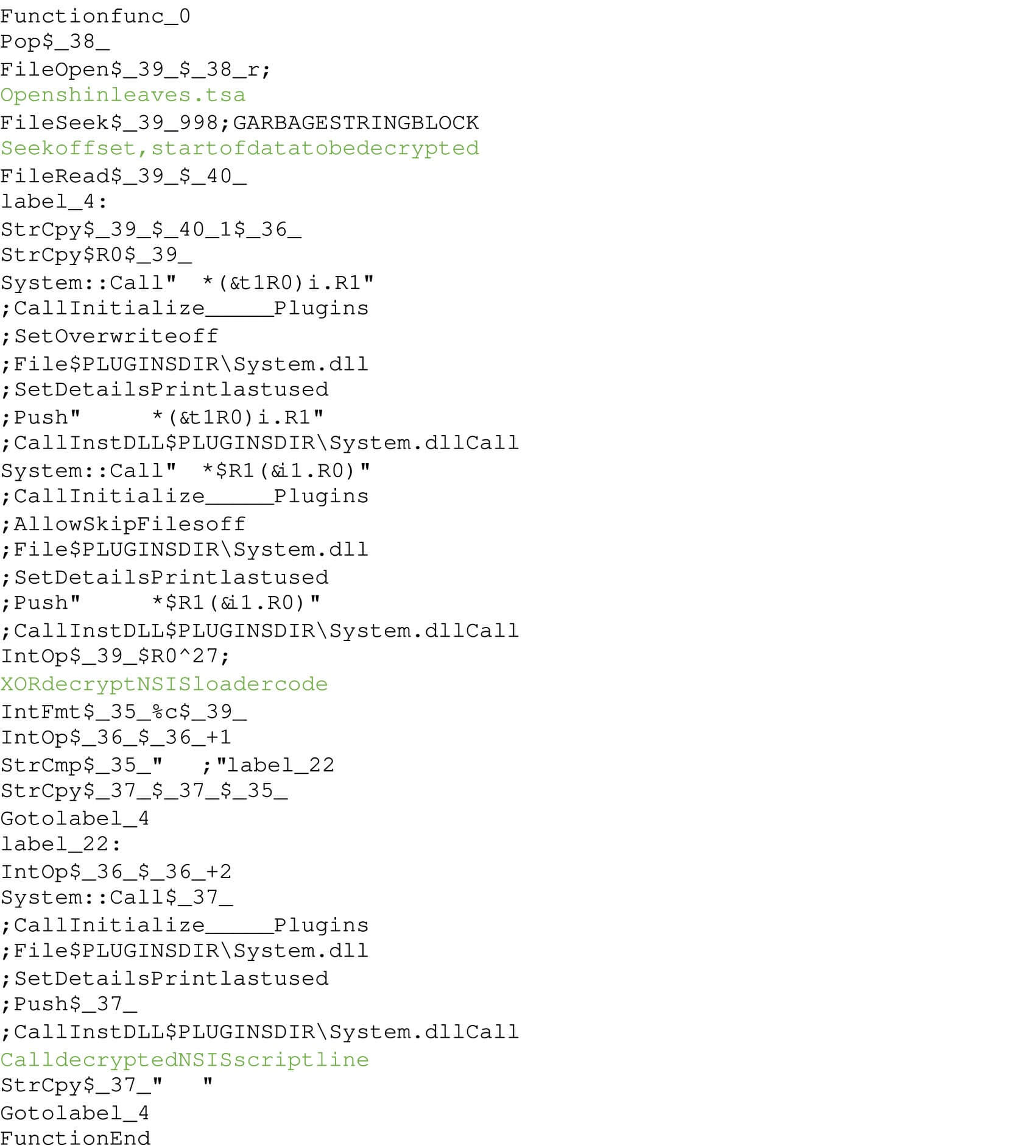

Figure 10: Updated NSIS script with XOR operation
Figure 10: Updated NSIS script with XOR operation

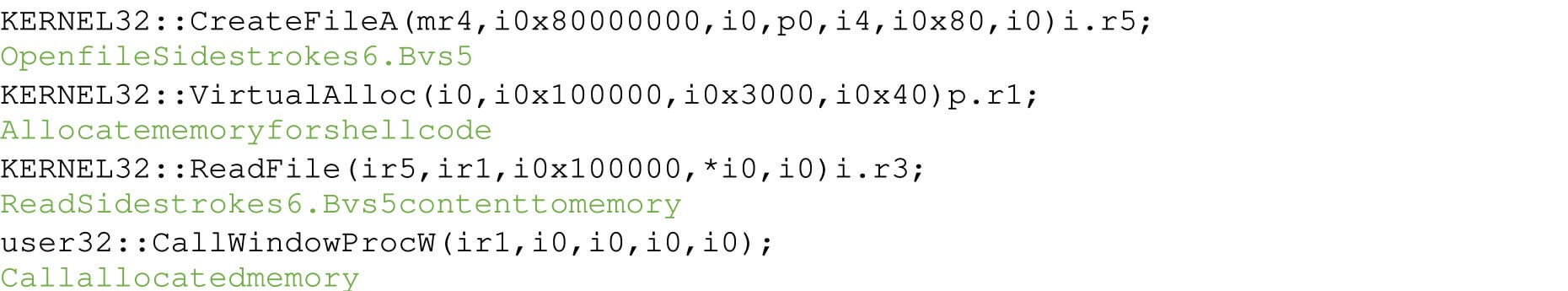

Figure 11: Decrypted NSIS loader code
Figure 11: Decrypted NSIS loader code

In September 2022, Trellix acquired further obfuscated NSIS files. The scripts used one-line commands with powershell.exe or cmd.exe to perform the XOR decoding of the payload. The XOR output is retrieved from the command stdout via ExecToStack and the second stage NSIS code calls CreateFileA, NtAllocateVirtualMemory, ReadFile and CloseHandle (Figure 12).

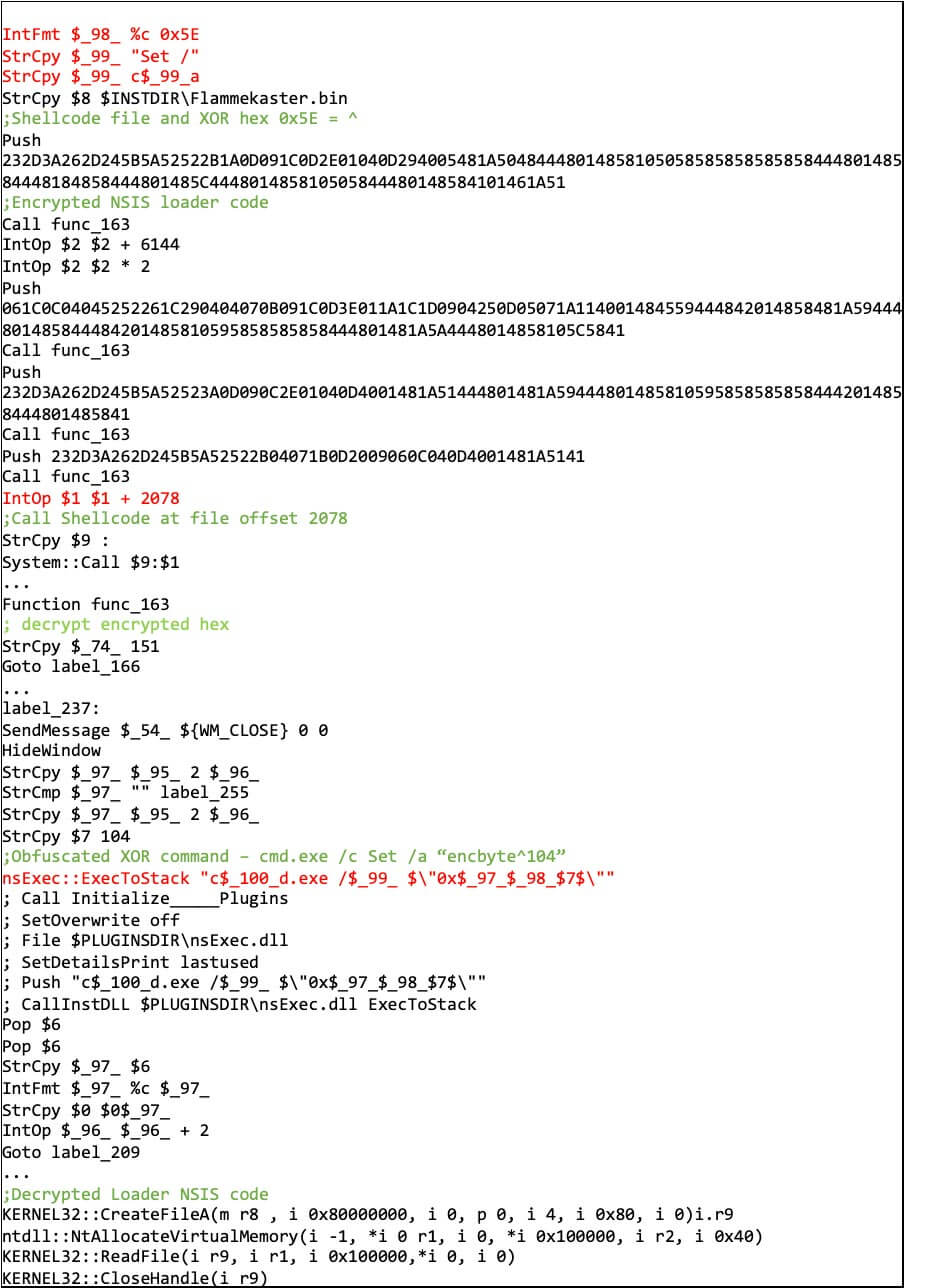

Figure 12: NSIS decrypts loader code with cmd or powershell
Figure 12: NSIS decrypts loader code with cmd or powershell

GuLoader String Encryption

In November 2022, Trellix obtained the NSIS file ff091158eec27558905a598dee86c043. The GuLoader shellcode extracted from this file uses an XOR decryption routine which was consistent in all versions throughout the year. In older samples from February until September 2022, the encrypted strings were located at specific offsets in the GuLoader shellcode. There was no calculation, concatenation of the encrypted strings prior to string decryption. The encrypted data and encrypted data length were simply being copied from a specific location and passed to the decrypt function.

The GuLoader shellcode from ff091158eec27558905a598dee86c043 brought in a new update by concatenating the encrypted data buffer. The encrypted data length and encrypted data are calculated per DWORD at runtime via specific randomized math operations (Figure 13).

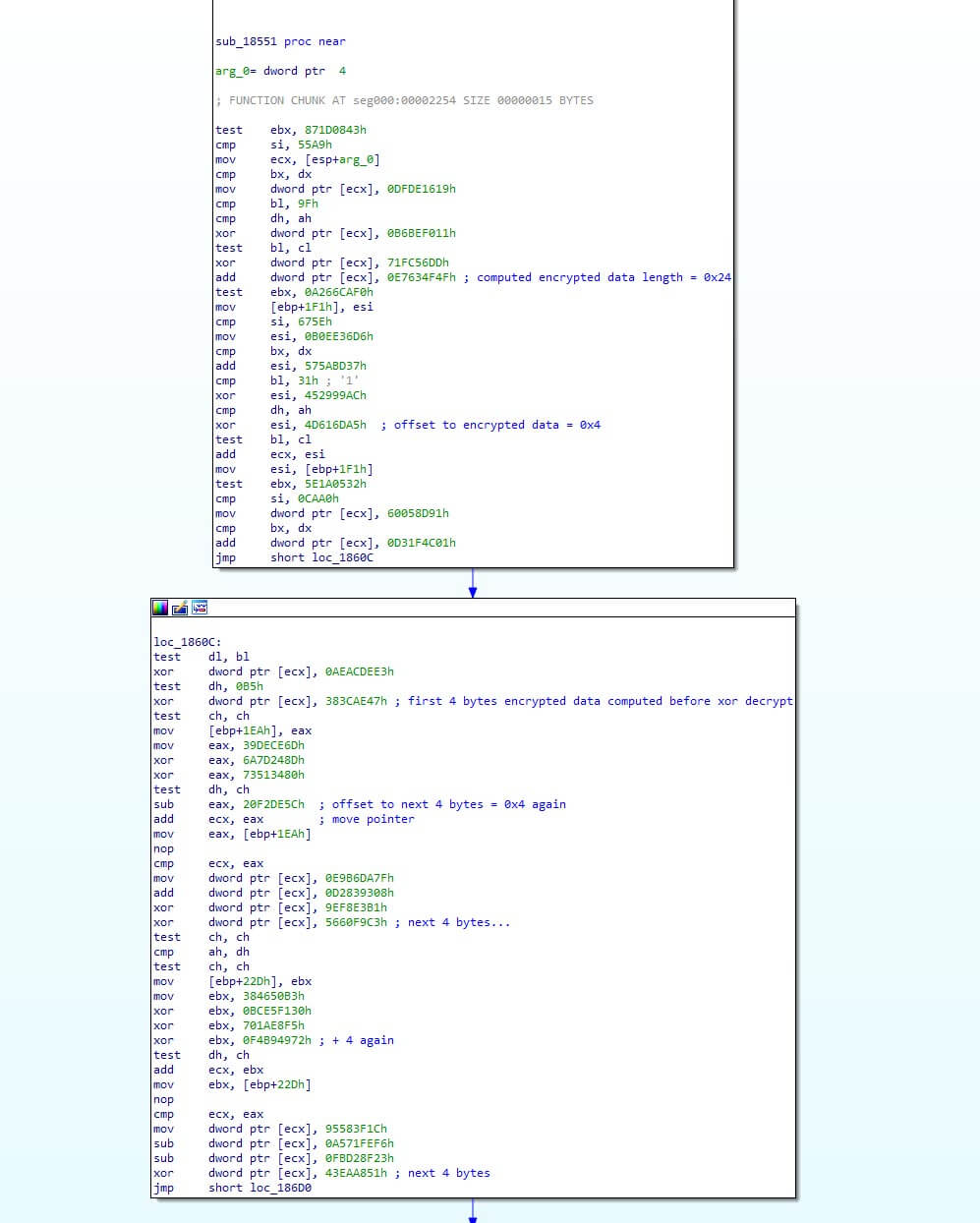

Figure 13: New GuLoader shellcode encrypted data concatenation
Figure 13: New GuLoader shellcode encrypted data concatenation

Summarizing the Advancements

In summary, the NSIS loader code and GuLoader shellcode was straightforward in February 2022. The NSIS script became more obfuscated towards the end of the year and the most recent change is the computation and concatenation of encrypted data in the GuLoader shellcode (Figure 14). The migration of GuLoader shellcode to NSIS executable files is a notable example to show the creativity and persistence of threat actors to evade detection, prevent sandbox analysis and obstruct reverse engineering.

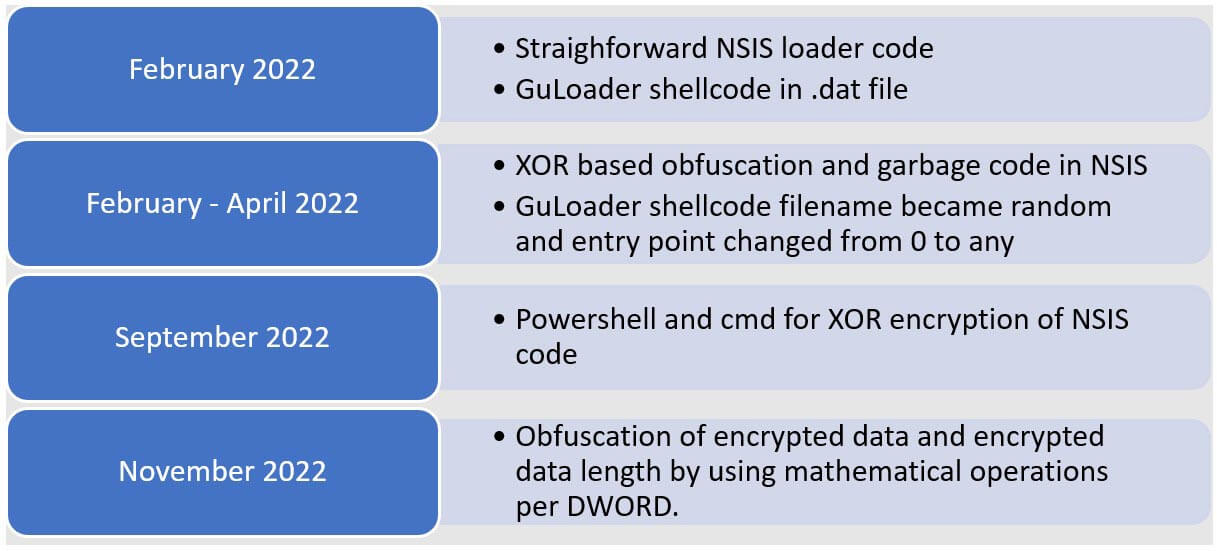

Figure 14: Summary of NSIS and GuLoader Obfuscation
Figure 14: Summary of NSIS and GuLoader Obfuscation

Appendix: GuLoader Hashes, Payload URLs and Trellix Protection
The payload to be downloaded by GuLoader varies, and potentially it might be AgentTesla, LokiBot, NanoCore RAT, NetWire RAT or a different malware family. The list of GuLoader payload URLs extracted are in Table 2 and the GuLoader NSIS executable files referenced for this blog are in Table 3.

Payload URLs

https[:]//staninnovationgroupllc[.]com/MYFORMBOOK_eyHVNu169 [.] bin

https[:]//drive[.]google[.]com/uc?export=download&id=1ffapdpLWKae2MES2ltCw9RdNejEAZDAQ

http[:]//91[.]245[.]255[.]55/java_agent_sZOCrs225 [.] bin

http[:]//37[.]120[.]222[.]192/texas_TYBnb22 [.] bin

http[:]//linkedindianer[.]com/infoo_UXXITSZ73 [.] bin

http[:]//193[.]239[.]86[.]180/build_CMxTGk211 [.] bin

http[:]//www[.]aortistf[.]tk/MAKS_rOOOVChP166 [.] bin

http[:]//jmariecompany[.]com/kOrg_sIhYtzsF95 [.] bin

https[:]//drive[.]google[.]com/uc?export=download&id=1ansa1ONnGoAMkTEB_Wbp1HpGzRPmLHCq

http[:]//posadalaprotegida[.]com[.]ar/EbiCBZqpSxRr192 [.] msi

https[:]//drive[.]google[.]com/uc?export=download&id=1YScc0lvOAwwaCDu5uuYbn6tWSsZGxlEM

https[:]//drive[.]google[.]com/uc?export=download&id=1bR29icPd_54Rzhuz9C80B1EpULuWDlVt

http[:]//146[.]70[.]79[.]13/GPUARDJZecPp13 [.] smi

http[:]//45[.]137[.]117[.]184/hvntfVSKcCQt84 [.] dsp

Table 2: Payload URLs

MD5

bd8d50eacc2cb7c6759fa5a62791e8d0

bffd0312e6151472c32be6dea6897b50

aa074c005a4b2e89dedd45bd9d869881

c691bc9cb2682c023351aa7460242eb9

d31f6ec6a53b1a2659d4697b72900dac

b53d5a3078e3d1cae1cf8f150987eb7f

22b82f46f0ff7c7a1b375aa84867d277

a5bb4f5bacfabb9c81035fec65a84012

f5e9499818bb35be1d5b670b833216bf

703254254bf23f72b26f54a936cda496

ff091158eec27558905a598dee86c043

1349db7fd7aaa4a1547cd4381cd7a9b1

Table 3: GuLoader NSIS executable hashes

Trellix Protection

Product Detection Signature

Trellix Network Security
Trellix VX
Trellix Cloud MVX
Trellix File Protect
Trellix Malware Analysis
Trellix SmartVision
Trellix Email Security
Trellix Detection As A Service

FEC_Loader_NSIS_Generic_2
FEC_Loader_NSIS_Generic_3
FEC_Loader_NSIS_Generic_4
FEC_Loader_NSIS_Generic_5
FEC_Loader_NSIS_Generic_6
FEC_Loader_NSIS_Generic_7
FEC_Loader_NSIS_Generic_8
FEC_Loader_NSIS_Generic_9
FEC_Loader_NSIS_Generic_10
FEC_Loader_NSIS_Generic_11
FEC_Loader_NSIS_Generic_12
FEC_Loader_NSIS_Generic_13
FEC_Loader_NSIS_Generic_14
FEC_Loader_NSIS_Generic_15
FEC_Loader_NSIS_Generic_16
FEC_Loader_NSIS_Generic_17
FEC_Loader_NSIS_Generic_18
FE_Trojan_UDF_Generic_1
FE_Trojan_UDF_Generic_9
FEC_Trojan_NSIS_Generic_3
FEC_Trojan_NSIS_Generic_4
FEC_Trojan_NSIS_Generic_5
FEC_Trojan_NSIS_Generic_6
FE_Trojan_ZIP_Generic_8


Suspicious FirstRpidMemOp Shellcode Injection
Suspicious File NSIS Loader
Suspicious Process Powershell from NSIS Activity
Suspicious Process from NSIS Activity
Suspicious File RarSFX drops NSIS Activity
Suspicious HighCpu by NSIS File
Policy File NSIS Delivered thru Emails

Trellix Endpoint Security (HX)

SCHTASK CREATION FROM SUSPICIOUS LOCATION (METHODOLOGY)
NEMESIS (BACKDOOR)
GULOADER B (FAMILY)
GREENRASH (BACKDOOR)


Trojan.GenericKD.48474441
Trojan.GenericKD.61018106
Gen:Variant.Nemesis.11224
Trojan.GenericKD.39044610
Trojan.GenericKD.49233337
Trojan.GenericKD.38913145
Trojan.GenericKD.48375819
Trojan.GenericKD.39062269
Gen:Variant.Nemesis.9369
Trojan.GenericKD.63488894
Generic.mg.d31f6ec6a53b1a26

Trellix Endpoint Security (ENS)

Generic trojan.ts
RDN/Generic Downloader.x
RDN/Generic.dx
Formbook.k
